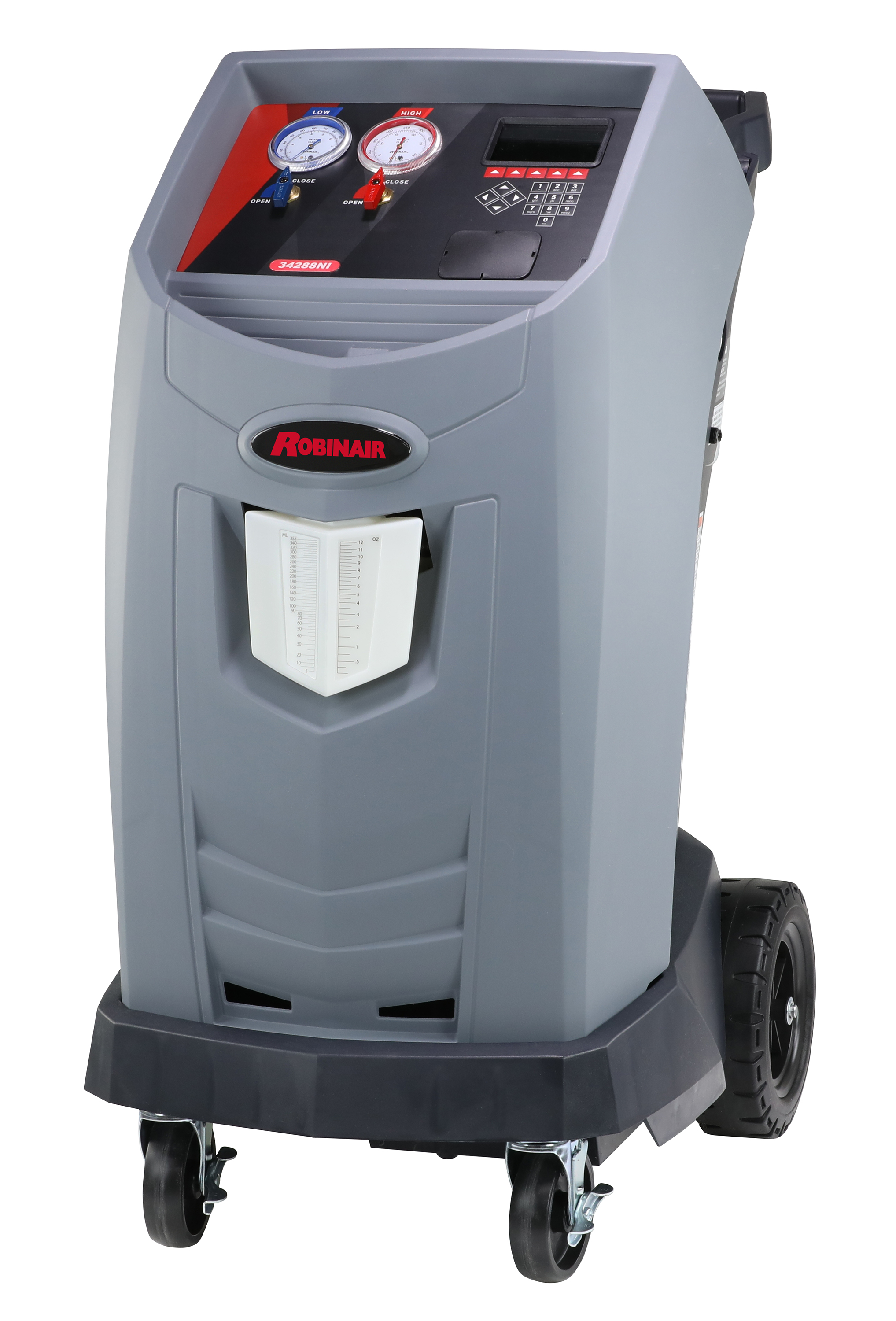

34288NI economy A/C machine R-134A
34288NI

Economy R-134A Recover, Recycle, Recharge Machine

The 34288NI combines simple operation with superior accuracy. It recovers, recycles, evacuates and recharges R-134A mobile A/C systems quickly and accurately. The product outperforms the most current SAE J-2788 standards for accuracy and efficiency, recovering more than 95% of the refrigerant in a vehicle's A/C system and charging to better than +/- 1/2 oz of the programmed charge amount.

Keep your machine operating with 34724 replacement filters or 13172 maintenance kits.

Compatible with accessory printer 30038.

Wi-Fi and Bluetooth Accessories:

  • Upgrade your machine with Wi-Fi and Bluetooth capability with 80211VCI Wireless Master Kit. The kit includes a USB Wi-Fi/Bluetooth adapter and software update SD card to enhance your machine. After installed, use the included OBDII dongle and refrigerant capacity database to read VIN, YMME and automatically pull refrigerant and oil capacities.
  • After your machine is upgraded, add the 80212 2-pack Bluetooth Temperature Probes to read and display multiple vent temperatures. Vent temps can be added to before and after service reports, confirming a repair and recording temperature differences.
  • For temp probes only, purchase the 80211TMP Wi-Fi/Temperatures Probes Master Kit, which includes the same USB/Wi-Fi Bluetooth adapter and software update SD card to enhance your machine as the 80211VCI kit.
Compare Models
  • 34288NI ACS machine
  • Operating Instructions
  • Scale calibration check weight
  • Service Center listing sheet
  • Vacuum pump oil wtih global complaint SDS sheet
  • Compressor oil with global compliant SDS sheet
  • EPA registration sheet/envelope
  • MACS 609 certification info sheet
  • Mobile Vehicle A/C equipment certification form
Dimensions
107 cm x 61 cm x 76 cm
Display
5 × 9 cm (4.3-in. diag) graphical LCD
Filter Capacity
68 kg (150 lb)
Humidity
32.2°C (90°F), 80% RH non-condensing
Gauges
Ø 80 mm (3.15 in.)
Maximum Pressure
27.3 bar (396 PSI)
Noise
<70 dB(A)
Operating Voltage
115V, 60 Hz
Oil Drain Bottle Capacity
355 ml (12 oz)
Operating Temperature
10°C to 50°C (50°F to 122°F)
Vacuum Pump
1.5 CFM (42 L/m) @ 60 Hz
Service Hoses
2.75 m (9 ft) / SAE J2196
Internal cylinder
30 lb DOT (13.6 kg); 22 lb (10 kg) capacity
Weight
73 kg (161 lb)
Model Number
34288NI
UPC
637335045019
Warranty
One Year

Compare to similar items

34288NI economy A/C machine R-134A

34288NI

AC1234-6 1234YF Recover, Recycle, Recharge Machine

AC1234-6

34788NI new enclosure image

34788NI

Refrigerant R134a R-1234yf R134a
A/C Service Manual Automatic Automatic
Manifold Values Yes - Panel valves Automatic - Not required Automatic - Not required
Recovery Efficiency 98.50% 98.50% 98.50%
Charge Accuracy +/- .5 oz +/- .5 oz +/- .5 oz
Automatic Internal Tank Refill No Yes Yes
Auto Oil Drain Yes Yes Yes
Auto Oil Injection No No Yes, 1 bottle
UV Dye Injection No No No
Air Purge Automatic Automatic Automatic
A/C Component Flushing No Yes Yes
Vacuum Leak Test No Yes Yes
Nitrogen Leak Test No No No
Vehicle Data Optional, 34412-E Optional, 34414-A Optional, 34412-E
Service Record Storage No Yes Yes
Refrigerant Management Yes Yes Yes
Display 5” x 9” Color, Graphical Display 5.7” LCD Display 5” x 9” Color, Graphical Display
Vacuum Pump 1.5 cfm single stage ( 70 microns ) 1.5 cfm dual stage (35 microns) 1.5 cfm dual stage (35 microns)
Internal Tank 30 lb 30 lb 30 lb
Hose Length 9 ft 9 ft 9 ft
Printer Optional, 30038 Yes Optional, 30038
Notification Light No Yes Yes
WiFi Capable Yes, requires 80211TMP or 80211VCI master kit No Yes, requires 80211TMP or 80211VCI master kit
Audio No Yes No
USB port No Yes Yes
Cord Wrap Yes Yes Yes
Filter-Drier Capacity 150 lbs 330 lbs 150 lbs
Warranty 1 Year 1 Year 1 Year
Service Over 255 trained and certified service facilities Over 255 trained and certified service facilities Over 255 trained and certified service facilities
Meets SAE J-2788 Requirements Yes Yes
RJ45 Ethernet Connector WiFi capable with 80211TMP or 80211VCI master kit Yes WiFi capable with 80211TMP or 80211VCI master kit
Integrated Refrigerant Identifier No Yes No
Contaminated Refrigerant Removal Port No Yes No
Meets SAE J-2843 Requirements No Yes
Meets SAE J-2927 No Yes
Hybrid/EV capable Yes Yes No
