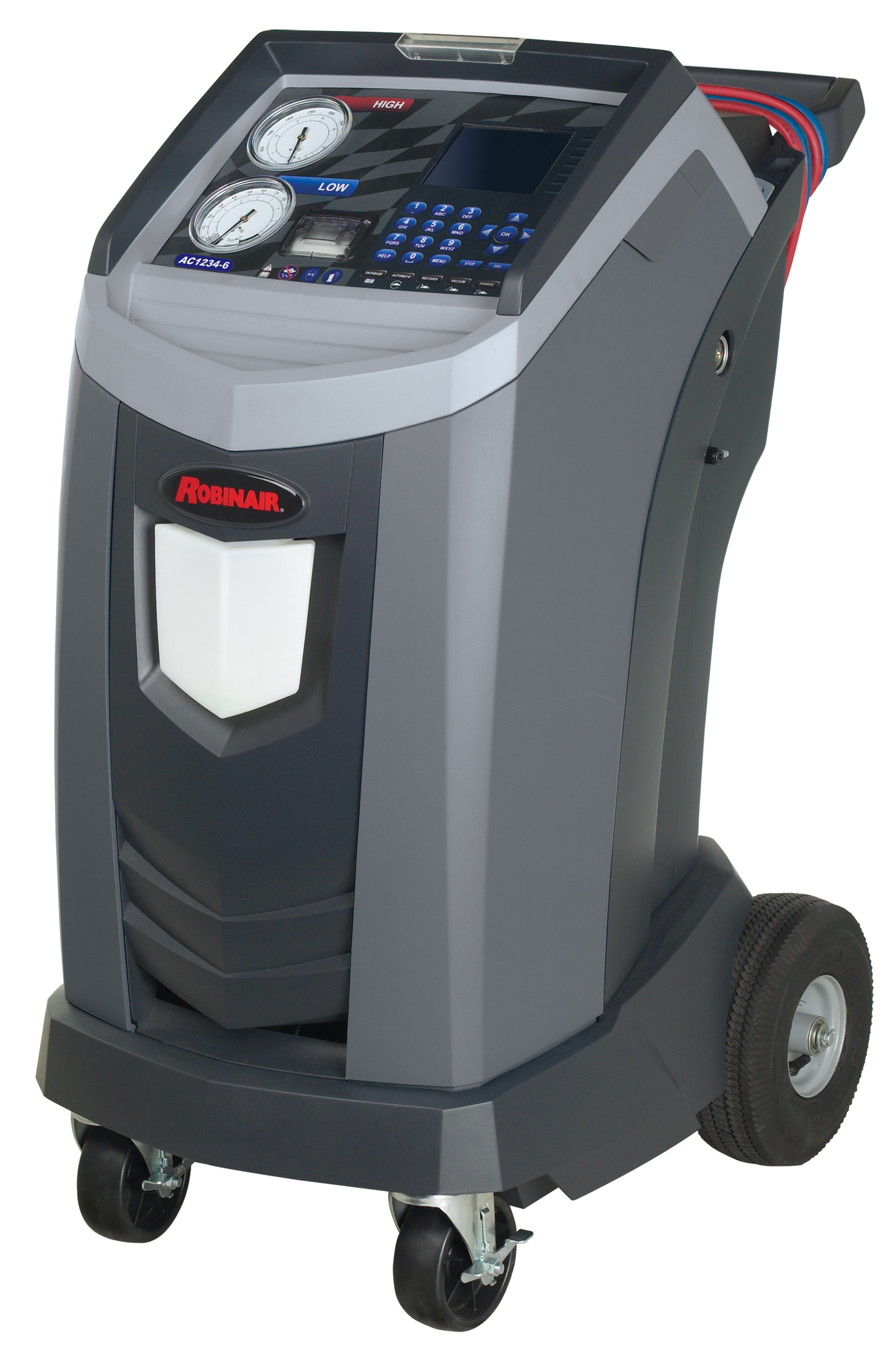

AC1234-6 1234YF Recover, Recycle, Recharge Machine
AC1234-6

1234YF Recover, Recycle, Recharge Machine

The AC1234-6 was the first commercially available machine to fully meet the SAE’s requirement for recovering, recycling and recharging vehicle A/C systems that use the new R1234YF refrigerant. The AC1234-6 is a fully automatic ACS machine that comes with an integrated refrigerant identifier that samples the refrigerant in the vehicle’s A/C system prior to recovery, is a highly accurate and reliable machine, and can service both standard and hybrid vehicle A/C systems.

  • Fully automatic operation — program for service, walk away and return when complete.
  • 98.5% recovery efficiency
  • Programmable vacuum operation helps get to the necessary vacuum level in any condition quickly.
  • System leak test to identify gross leaks in a system.
  • Charge accuracy within +/- ½ oz.
  • Automatic oil drain shows how much oil was removed from the system during service.
  • Automatic air purge removes the potential of air accumulating in the internal tank.
  • Integrated refrigerant identifier (meets SAE J2927)
  • Liquid refrigerant flushing function can flush A/C systems or individual components using liquid refrigerant instead of harsh chemicals.
  • Automatic internal tank refill. No stopping to fill the internal tank during service, or before service.
  • 1/4 Color VGA display. Large easy to read graphical display
  • On-board printer capable of printing vehicle service report slips to present to customers.

Keep your machine operating with 34724 replacement filters, Robinair high vacuum pump oil and 13172 maintenance kits.

Integrated refrigerant identifier replacement parts:

  • 16913 filter
  • 16916 oxygen sensor
  • 16106 sample hose assembly
Compare Models
Voltage
Operating voltage - 103-127V, 60Hz AC
Gauges
100mm, EN837-1 pressure gauges
User interface
Alpha-numeric keypad with service function keys
Vacuum pump
1.5 cfm dual stage vacuum pump
Compressor
1/3 hp hermetic compressor
Internal cylinder
30 lb ASME (13.6 kg); 21 lb (9.5 kg) capacity
Media ports
USB, SD, and RJ45 I/O ports
Hoses
8 ft. SAE J2888 service hoses with 1234YF high and low side system couplers
Certifications
Meets all requirements of SAE J2843, J2927
UPC
637335042445
Warranty
One Year
  • 0
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9

Compare to similar items

AC1234-6 1234YF Recover, Recycle, Recharge Machine

AC1234-6

34788NI new enclosure image

34788NI

34788NI-H new enclosure image

34788NI-H

Refrigerant R-1234yf R134a R134a
A/C Service Automatic Automatic Automatic
Manifold Values Automatic - Not required Automatic - Not required Automatic - Not required
Recovery Efficiency 98.50% 98.50% 98.50%
Charge Accuracy +/- .5 oz +/- .5 oz +/- .5 oz
Automatic Internal Tank Refill Yes Yes Yes
Auto Oil Drain Yes Yes Yes
Auto Oil Injection No Yes, 1 bottle No
UV Dye Injection No No No
Air Purge Automatic Automatic Automatic
A/C Component Flushing Yes Yes Yes
Vacuum Leak Test Yes Yes Yes
Nitrogen Leak Test No No No
Vehicle Data Optional, 34414-A Optional, 34412-E Optional, 34412-E
Service Record Storage Yes Yes Yes
Refrigerant Management Yes Yes Yes
Display 5.7” LCD Display 5” x 9” Color, Graphical Display 5” x 9” Color, Graphical Display
Vacuum Pump 1.5 cfm dual stage (35 microns) 1.5 cfm dual stage (35 microns) 1.5 cfm dual stage (35 microns)
Internal Tank 30 lb 30 lb 30 lb
Hose Length 9 ft 9 ft 9 ft
Printer Yes Optional, 30038 Optional, 30038
Notification Light Yes Yes Yes
WiFi Capable No Yes, requires 80211TMP or 80211VCI master kit Yes, requires 80211TMP or 80211VCI master kit
Audio Yes No No
USB port Yes Yes Yes
Cord Wrap Yes Yes Yes
Filter-Drier Capacity 330 lbs 150 lbs 150 lbs
Warranty 1 Year 1 Year 1 Year
Service Over 255 trained and certified service facilities Over 255 trained and certified service facilities Over 255 trained and certified service facilities
Meets SAE J-2788 Requirements Yes Yes
RJ45 Ethernet Connector Yes WiFi capable with 80211TMP or 80211VCI master kit WiFi capable with 80211TMP or 80211VCI master kit
Integrated Refrigerant Identifier Yes No No
Contaminated Refrigerant Removal Port Yes No No
Meets SAE J-2843 Requirements Yes
Meets SAE J-2927 Yes
Hybrid/EV capable Yes No Yes
