15310

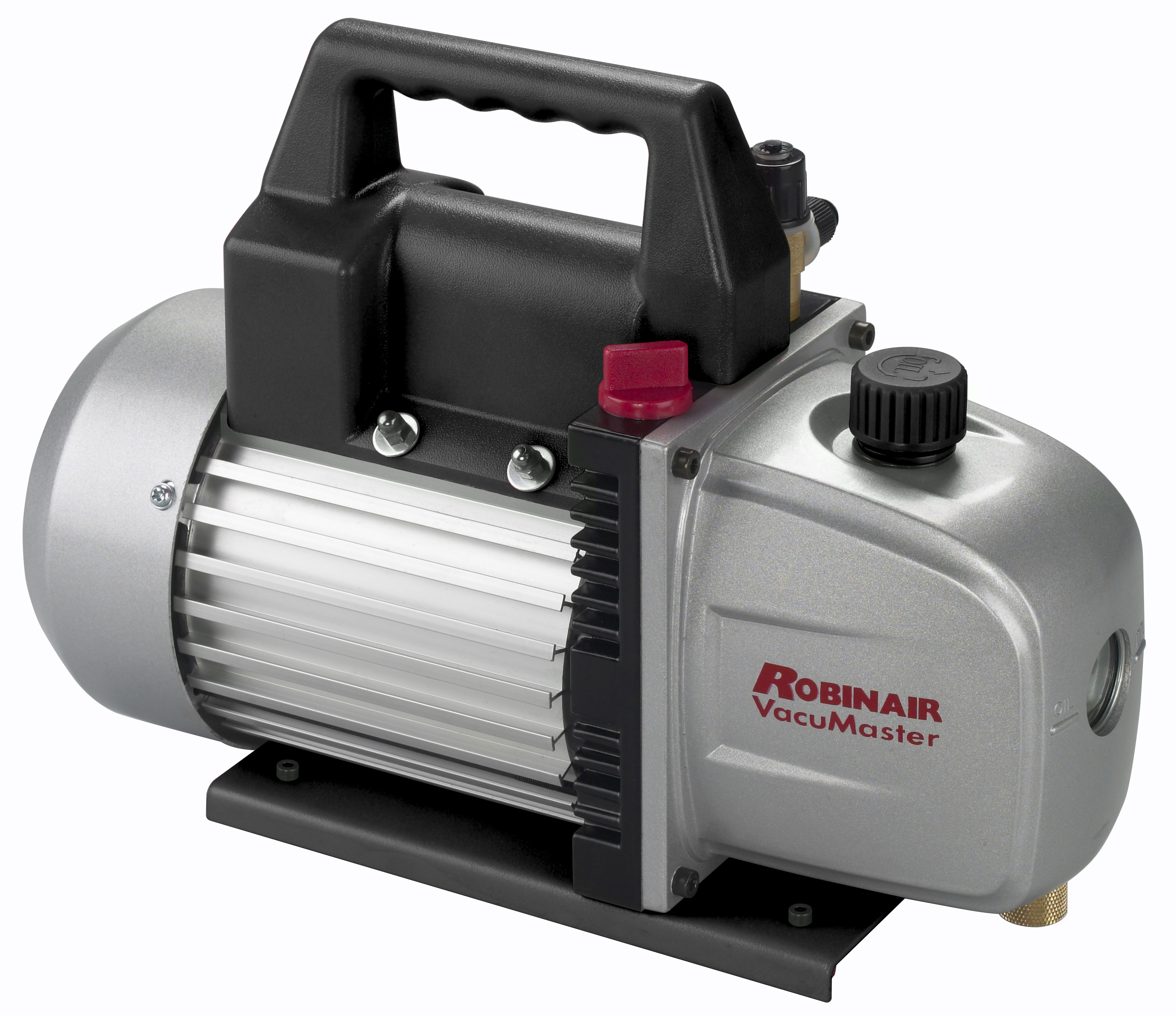

VacuMaster® Single Stage Pump
Robinair VacuMaster™ single-stage vacuum pump features below. See Specifications tab for voltage, micron rating, recommended uses, dimensions and more.
- Angled oil drain valve: faster, more complete draining
- Top oil fill port: Better access when refilling oil
- Cast aluminum body: Lightweight and durable die-cast aluminum reduces weight and creates a strong, durable pump
- Quality: Performance-tested to meet Robinair’s quality, durability and longevity standards
- Intake screen: Prevents foreign matter from entering pumping chamber. External exhaust filter separates oil vapor from exhaust flow
- “No Hassle” warranty: Exclusive over-the-counter replacement warranty. Robinair pumps can be returned to a distributor for an immediate exchange. U.S. and Canada only. In other locations, see your Robinair distributor
- Multi-use: Designed for use on A/C-R systems using CFCs, HCFCs, and HFCs in conjunction with mineral oil, ester oil, alkyl benzene oil, and PAG oil as lubricants
- Not for use with ammonia or lithium bromide systems
- Not for use with A4L or other flammable refrigerants
Free air displacement
3 CFM
Factory micron rating
75 microns
Stages
1
Intake fitting
1/4" flare and 1/2" Acme
Oil capacity
8.5 oz. (250 ml)
Motor size
1/3 hp
Voltage
110V 60Hz
Approvals
CSA, as of June 2020
Weight
18 lbs. (8.2 kg)
Dimensions
10" H x 4.875" W x 13.25" L (255 mm x 123 mm x 336 mm)
Uses
Up to 10 tons (35 kW) domestic refrigeration, passenger cars
Cord length
6' (1.82 m)
UPC
637335039698
Warranty
One Year
Compare to similar items
 15310 |
 15115 |
 15150 |
|
|---|---|---|---|
| Free air displacement | 3 CFM | 1.5 CFM | 1.5 CFM |
| Factory micron rating | 75 microns | 115 microns | 50 microns |
| Stages | 1 | 1 | 2 |
| Intake fitting | 1/4” flare and 1/2” Acme | 1/4” flare and 1/2” Acme | 1/4” MFL and 3/8” Acme 3/8” FFL x 1/2” Acme adapter |
| Oil capacity | 8.5 oz. (250 ml) | 10 oz. (300 ml) | 7.4 oz. (219 ml) |
| Motor size | 1/3 hp | 1/4 hp | 1/3 hp |
| Voltage | 110V 60Hz | 110V 60Hz | 115V 60 Hz |
| Approvals | CSA | CSA | CSA |
| Uses | Up to 30 tons (105kW) Residential A/C, panel trucks & RVs | Up to 10 tons (35kW) domestic refrigeration, passenger cars | Up to 10 tons (35kW) domestic refrigeration, passenger cars |
| Cord length | 6’ (1.8 m) | 6’ (1.8 m) | 6’ (1.8 m) |
| Learn More | Learn More | Learn More |
