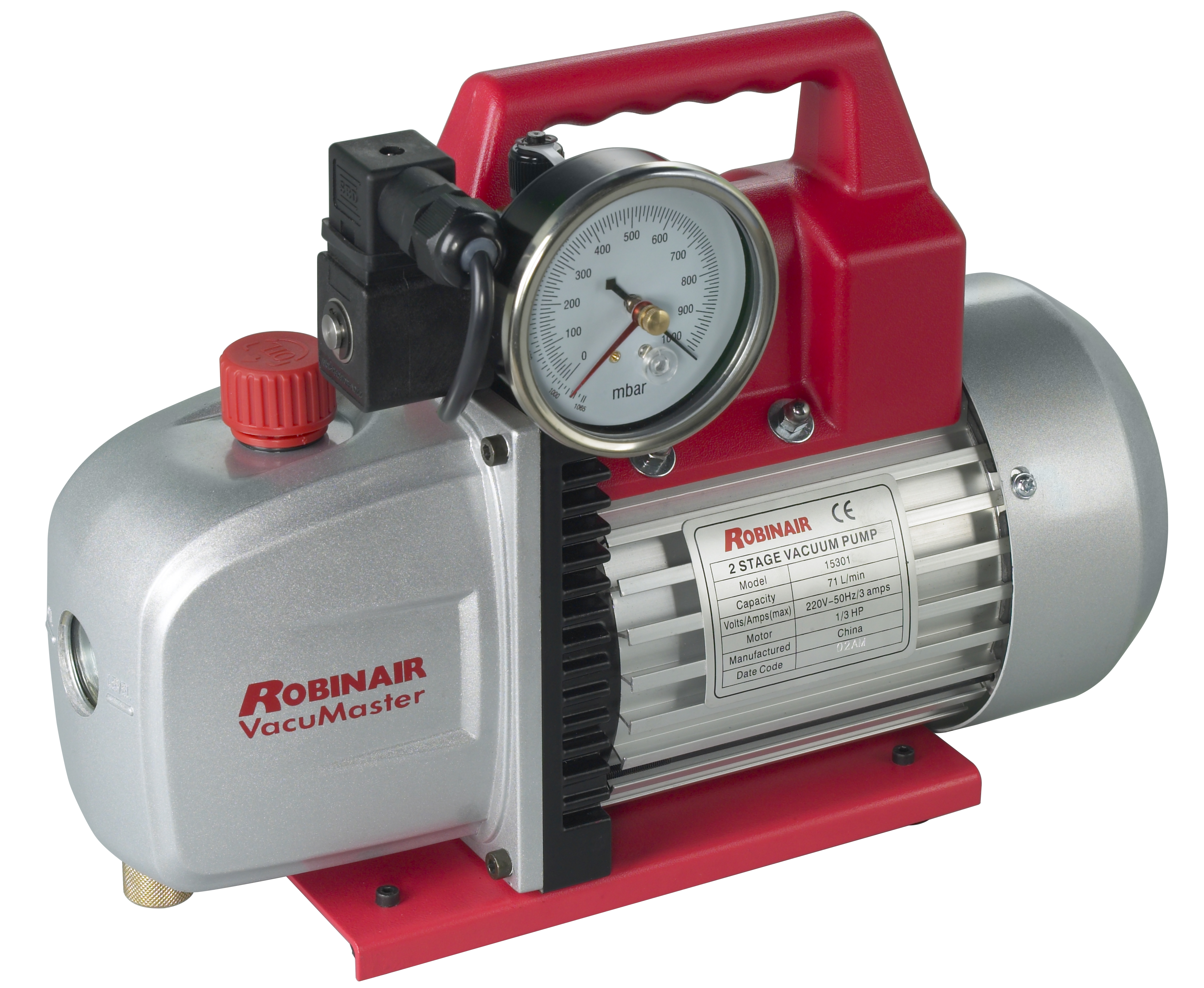

Robinair 15301 71 LPM vacuum pump photo
15301

VacuMaster 71 Lpm Vacuum Pump 220V,50Hz

Robinair VacuMaster™ vacuum pump features below. See Specifications tab for voltage, micron rating, recommended uses, dimensions and more.

  • 2-stage rotary vane design: Powerful, quiet high vacuum capability for maximum moisture removal and reduced evacuation time
  • Heavy-duty motor: Sealed bearing, high-torque design for easy startup and efficient operation
  • Angled oil drain valve: faster, more complete draining
  • Easy view sight glass: Easily see oil levels
  • Top oil fill port: Better access when refilling oil
  • Cast aluminum body: Lightweight and durable die-cast aluminum reduces weight and creates a strong, durable pump
  • Quality: Performance-tested to meet Robinair’s quality, durability and longevity standards
  • Intake screen: Prevents foreign matter from...
Read More Compare Models
Free air displacement
71 liters/minute (3 CFM)
Factory micron rating
35 microns
Stages
2
Intake fitting
1/4" MFL and 1/2" MFL 3/8" FFL x 1/2" Acme adapter
Oil capacity:
220 ml (7.5 oz)
Motor size
1/3 hp
Voltage
220V 50Hz
Approvals
CE
Weight
12.5 kg (28 lbs.)
Dimensions
255 mm x 123 mm x 336 mm (10" H x 5" W x 13" L)
Uses
Up to 30 tons (105 kW) Residential A/C, panel trucks & RVs
Cord length
1.82 m (6')
UPC
637335016262
Warranty
One Year

Compare to similar items

Robinair 15301 71 LPM vacuum pump photo

15301

15115
15150 VacuMaster 1.5 CFM pump photo

15150
Free air displacement 71 liters/minutes 1.5 CFM 1.5 CFM
Factory micron rating 35 microns 115 microns 50 microns
Stages 2 1 2
Intake fitting 1/4” MFL and 1/2” MFL 3/8” FFL x 1/2” Acme adapter 1/4” flare and 1/2” Acme 1/4” MFL and 3/8” Acme 3/8” FFL x 1/2” Acme adapter
Oil capacity 7.5 oz. (220 ml) 10 oz. (300 ml) 7.4 oz. (219 ml)
Motor size 1/3 hp 1/4 hp 1/3 hp
Voltage 220V 50Hz 110V 60Hz 115V 60 Hz
Approvals CE CSA CSA
Uses Up to 30 tons (105kW) Residential A/C, panel trucks & RVs Up to 10 tons (35kW) domestic refrigeration, passenger cars Up to 10 tons (35kW) domestic refrigeration, passenger cars
Cord length 6’ (1.8 m) 6’ (1.8 m) 6’ (1.8 m)
