TIFZX

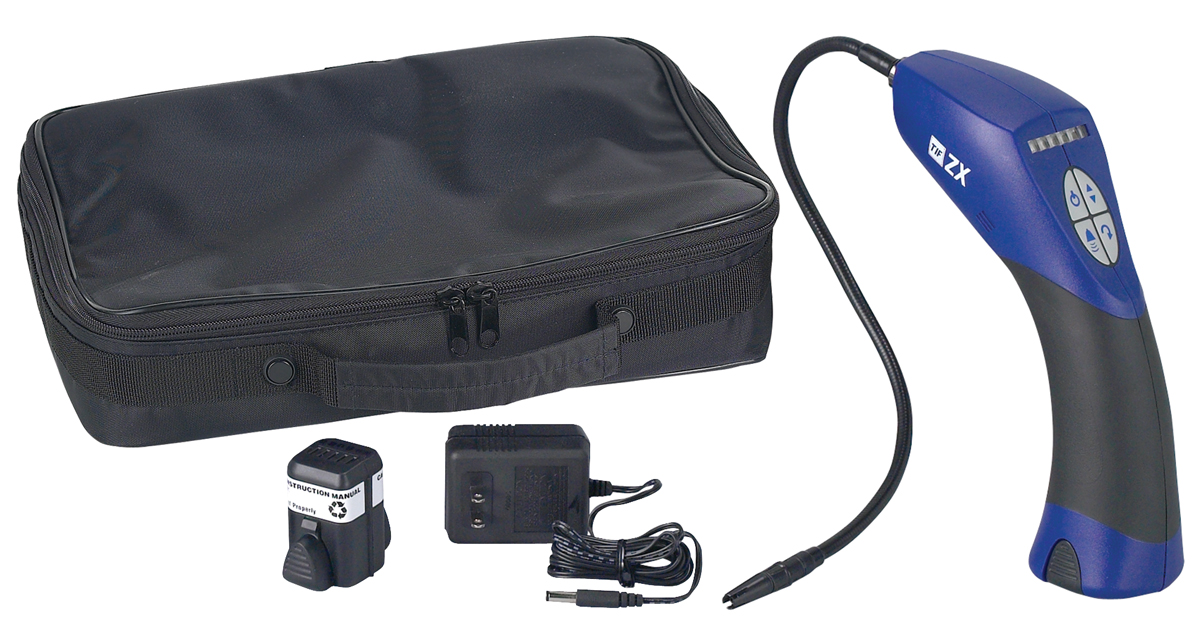

TIFZX Heated Pentode Refrigerant Detector

The Tool Professionals Use to Find Refrigerant Leaks

The TIF Heated Pentode refrigerant leak detector fi nds the leak faster and with more accuracy saving you time and money. Refrigerant leaks are hard to fi nd and our patented refrigerant specifi c detection eliminates ambient ‘false alarms’ by directing you quickly to the source of the leak. Comfortable and easy to use, it’s engineered for daily use in industrial or residential applications. Find the leak and close the service call quicker with the TIFZX.

Responsive. Accurate. Quick.

  • Heated Pentode® Sensor Technology
  • Visual Leak Size Indicator
  • No Calibration Required

Features

  • Detects All refrigerants – Capable of detecting all halogenated refrigerants, including R410A
  • Tri-Color Visual Leak Size Indicator – Intensity increases as the source of a leak is detected
  • True Mechanical Pump – Provides instant response and quick clearing
  • Tactile Control Pad – Easy one touch function selection
  • Adjustable Sensitivity – One touch reset and sensitivity adjustment to pinpoint exact location of a leak.
Sensor Technology
Heated Pentode®
Sensor Life Expectancy
Up to 150 Hrs of normal use
Refrigerants Detected
All CFC, HFC, and HCFCs
Sensitivity
less than 0.1oz/yr (3g/yr); as low as 0.05 oz/yr (R-12)
Excessive Refrigerant Tolerance
Sensor cannot be ‘poisoned’ by excessive refrigerant
Warm Up
20 Seconds
Battery
Rechargeable NiMH, 6 hour life; 2 hour recharge time
Operating Enviornment
32ºF to 125ºF (0ºC to 52ºC); 0 to 95% RH non-condensing
Probe
16” Coated
Dimensions
10.25”L x 2.5” Dia.
Weight
16 oz. (452g)
Agency Approvals
CE, SAE J1667
Warranty
3 year limited
UPC
687744601795
