15434

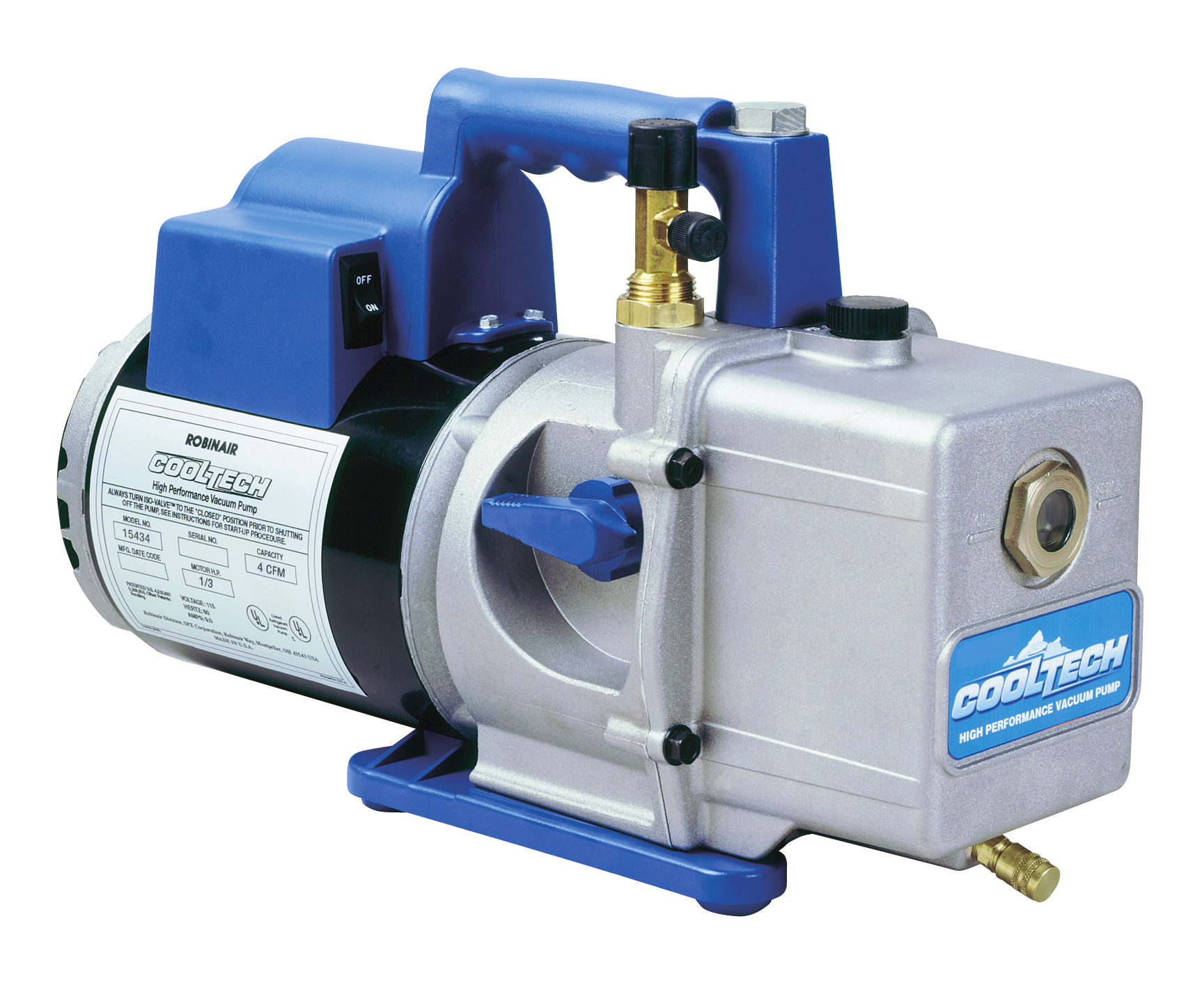

4 CFM Vacuum Pump
Robinair vacuum pump features below. See Specifications tab for voltage, micron rating, recommended uses, dimensions and more.
- Iso-Valve™: Isolates the pump from the system with just a quarter-turn
- Gas ballast: Allows moist air to pass through the pump to mix with dry air, reducing condensation
- Heavy-duty motor: Sealed bearing, high-torque design for easy startup and efficient operation
- 2-stage rotary vane design: Powerful, quiet high vacuum capability for maximum moisture removal and reduced evacuation time
- Offset rotary vanes: Unique design builds more compression, reducing system pressure and removing more moisture
- Molded polycarbonate base: Reduces vibration and provides balance during operation
- Angled oil drain...
Compare to similar items
| Free air displacement | 4 CFM |
| Factory micron rating | 15 microns |
| Stages | 2 |
| Intake fitting | 1/4” MFL & 1/2” ACME |
| Oil capacity | 13 oz (384 ml) |
| Motor size | 1/3 hp |
| Voltage | 115V 60 Hz |
| Approvals | UL |
| Uses | Up to 30 tons (105kW) Residential A/C, panel trucks & RVs |
| Cord length | 6’ (1.8 m) |
