15500

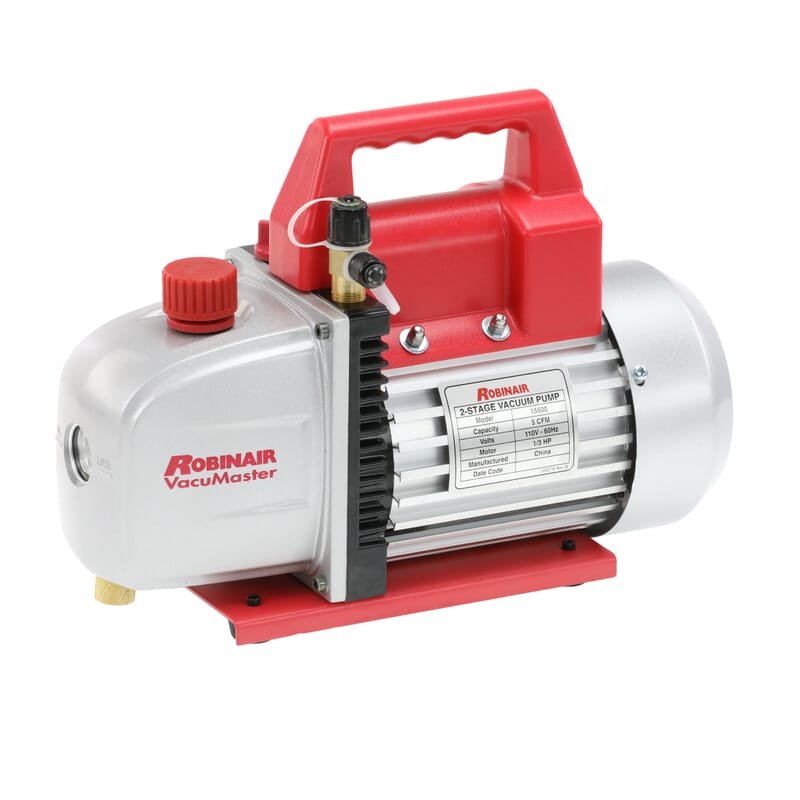

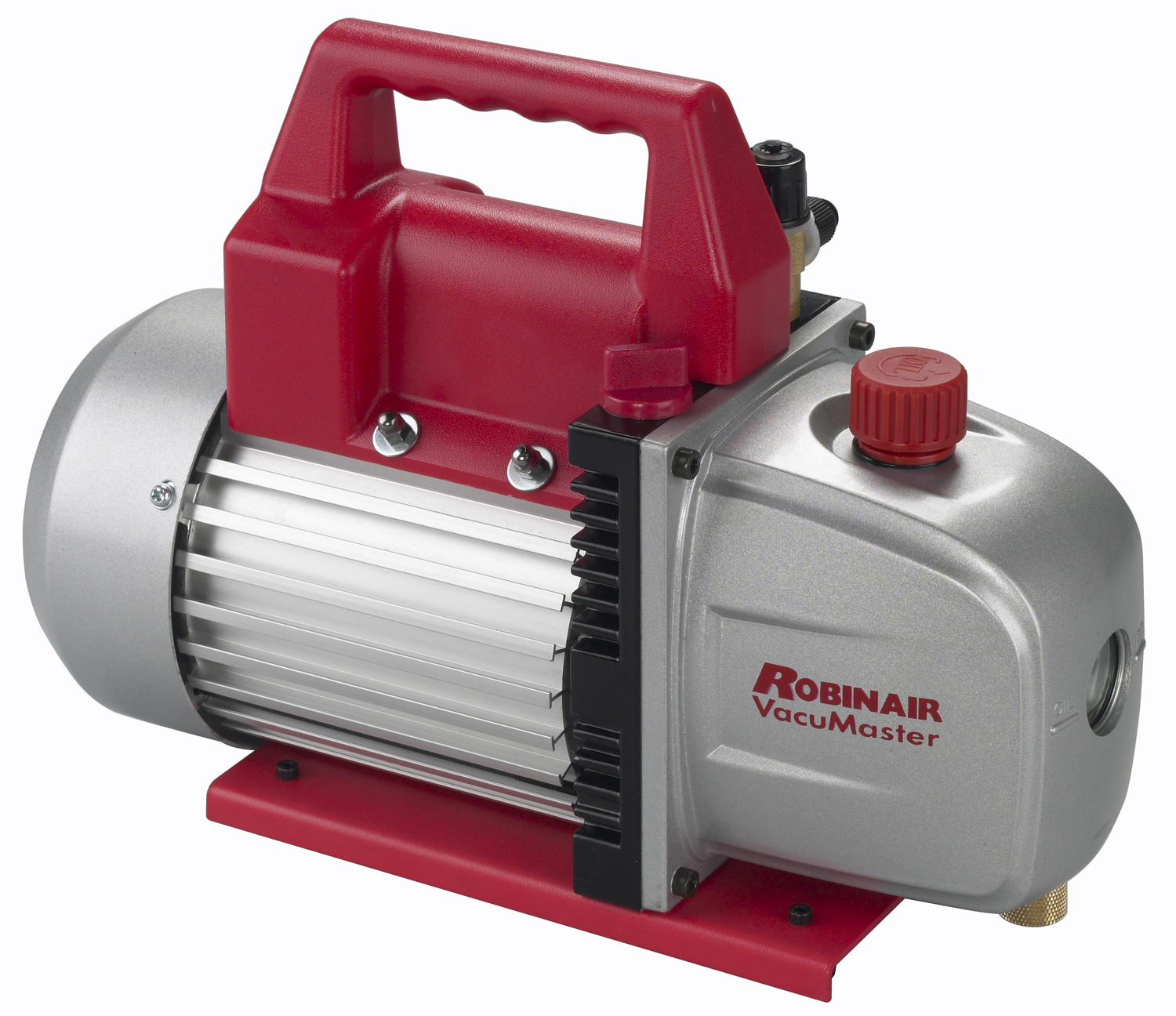

VacuMaster 5 CFM Vacuum Pump
Robinair VacuMaster™ vacuum pump features below. See Specifications tab for voltage, micron rating, recommended uses, dimensions and more.
- 2-stage rotary vane design: Powerful, quiet high vacuum capability for maximum moisture removal and reduced evacuation time
- Heavy-duty motor: Sealed bearing, high-torque design for easy startup and efficient operation
- Angled oil drain valve: faster, more complete draining
- Easy view sight glass: Easily see oil levels
- Top oil fill port: Better access when refilling oil
- Cast aluminum body: Lightweight and durable die-cast aluminum reduces weight and creates a strong, durable pump
- Quality: Performance-tested to meet Robinair’s quality, durability and longevity standards
- Intake screen: Prevents foreign matter from entering pumping chamber. External exhaust filter separates oil vapor from exhaust flow
- Brass intakes: Reliable brass intake valves with Flare, ACME or both style fittings with tethered caps
- “No Hassle” warranty: Exclusive over-the-counter replacement warranty. Robinair pumps can be returned to a distributor for an immediate exchange. U.S. and Canada only. In other locations, see your Robinair distributor
- Multi-use: Designed for use on A/C-R systems using CFCs, HCFCs, and HFCs in conjunction with mineral oil, ester oil, alkyl benzene oil, and PAG oil as lubricants
- Not for use with ammonia or lithium bromide systems
- Not for use with A4L or other flammable refrigerants
Free air displacement
5 CFM
Factory micron rating
35 microns
Stages
2
Intake fitting
1/4" MFL and 3/8" Acme 3/8" FFL x 1/2" Acme adapter
Oil capacity
7.5 oz. (220 ml)
Motor size: 1/3 hp
Voltage
115V 60Hz
Approvals
CSA, as of June 2020
Weight
28 lbs. (12.2 kg)
Dimensions
10" H x 5" W x 13" L (255 mm x 123 mm x 336 mm)
Uses
Up to 50 tons (176 kW) Rooftop A/C systems, tractor/trailers, buses
Cord length
6' (1.8 m)
UPC
637335016248
Warranty
One Year
Compare to similar items
15500 |
15115 |
15150 |
|
---|---|---|---|
Free air displacement | 5 CFM | 1.5 CFM | 1.5 CFM |
Factory micron rating | 35 microns | 115 microns | 50 microns |
Stages | 2 | 1 | 2 |
Intake fitting | 1/4” MFL and 3/8” Acme 3/8” FFL x 1/2” Acme adapter | 1/4” flare and 1/2” Acme | 1/4” MFL and 3/8” Acme 3/8” FFL x 1/2” Acme adapter |
Oil capacity | 7.5 oz. (220 ml) | 10 oz. (300 ml) | 7.4 oz. (219 ml) |
Motor size | 1/3 hp | 1/4 hp | 1/3 hp |
Voltage | 115V 60 Hz | 110V 60Hz | 115V 60 Hz |
Approvals | CSA | CSA | CSA |
Uses | Up to 30 tons (105kW) Residential A/C, panel trucks & RVs | Up to 10 tons (35kW) domestic refrigeration, passenger cars | Up to 10 tons (35kW) domestic refrigeration, passenger cars |
Cord length | 6’ (1.8 m) | 6’ (1.8 m) | 6’ (1.8 m) |
